Pakistan F-16 Discussions 2

[Tacticool]

View attachment 177064 View attachment 177063

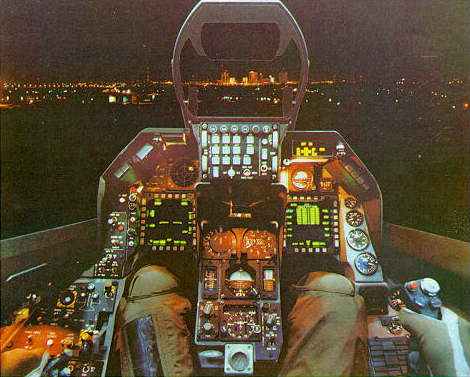

Above F-16C Cockpit.

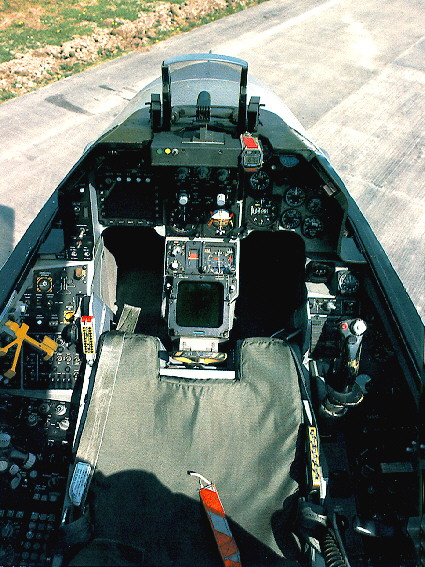

Below F-16A Cockpit.

View attachment 177065

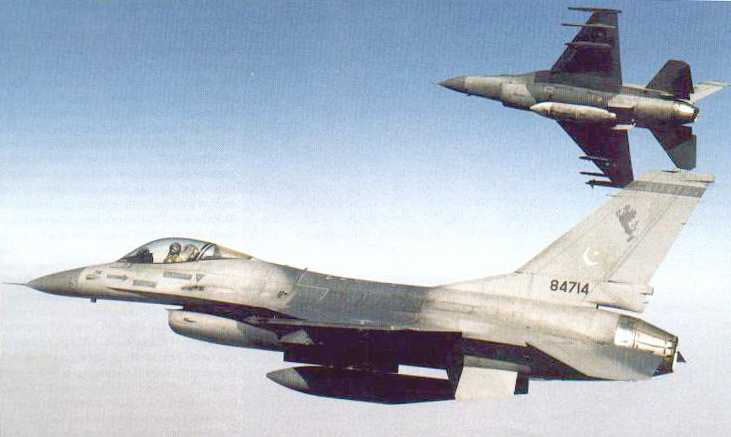

F-16 Griffons

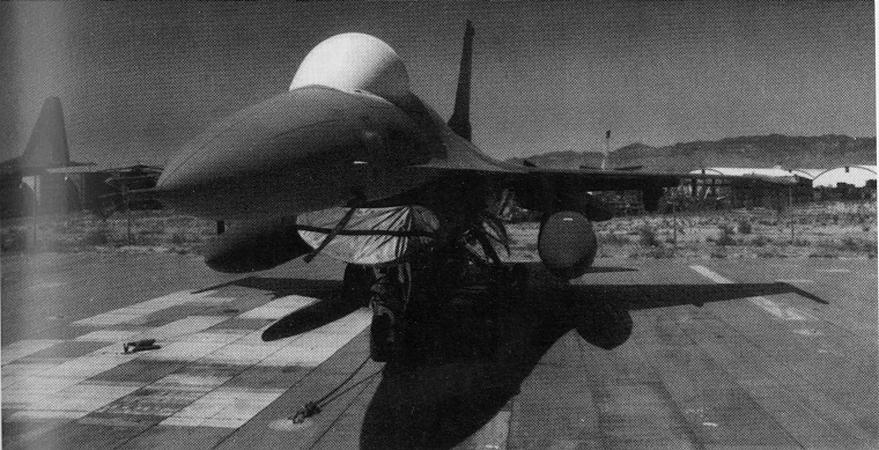

View attachment 177066 F-16A - Block 15 OCU, embargoed.

Shouldn't F-16 C have 3 MFDs?



[SQ8]

Shouldn't F-16 C have 3 MFDs?

Nope, the F-16 blockC has two MFDs and the Centre console is for analogue instruments.Only the F-16E has three MFDs. There are upgrades offered for older F-16s that add a centre display.



[IrbiS]

PAF F-16A 84709 landing with ALQ-131 Jamming Pod(Most likely in Turkey)

Found another one. It's definitely in Turkey.



[black-hawk_101]

Nope, the F-16 blockC has two MFDs and the Centre console is for analogue instruments.Only the F-16E has three MFDs. There are upgrades offered for older F-16s that add a centre display.

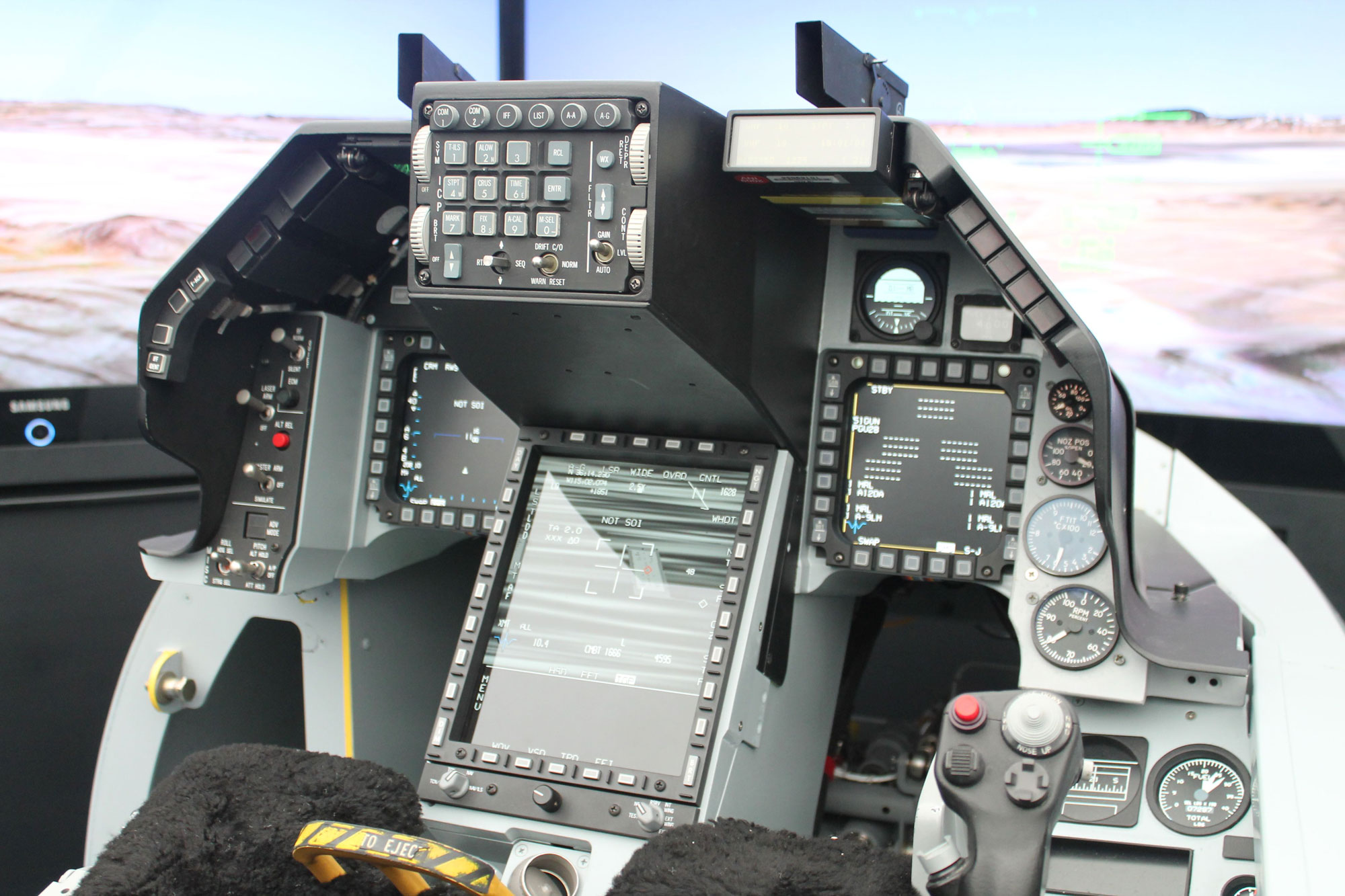

View attachment 177234

Why didn't UAE produced F-16s on its own, I mean assemble as they have tech too. Like Producing 150+ F-16s E/F for them and also some for Oman, Qatar, Bahrain and Kuwait as well.



[Donatello]

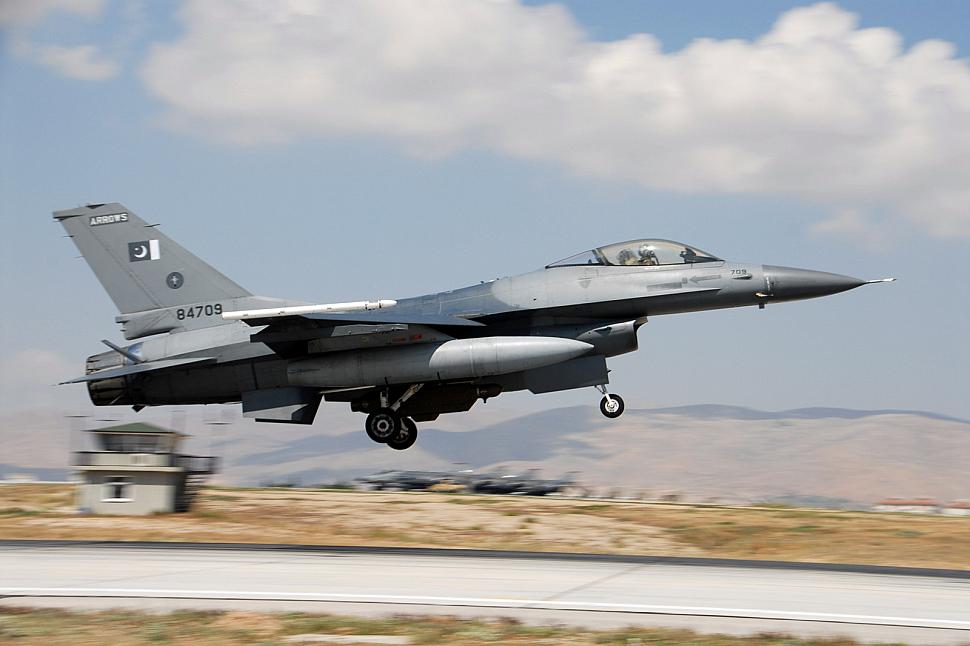

PAF F-16A 84709 landing with ALQ-131 Jamming Pod(Most likely in Turkey).View attachment 177644

Is that the DRS ACT pod on the starboard wing tip?



[IrbiS]

Is that the DRS ACT pod on the starboard wing tip?

Nope. The one you're referring to, is called P5.



[Donatello]

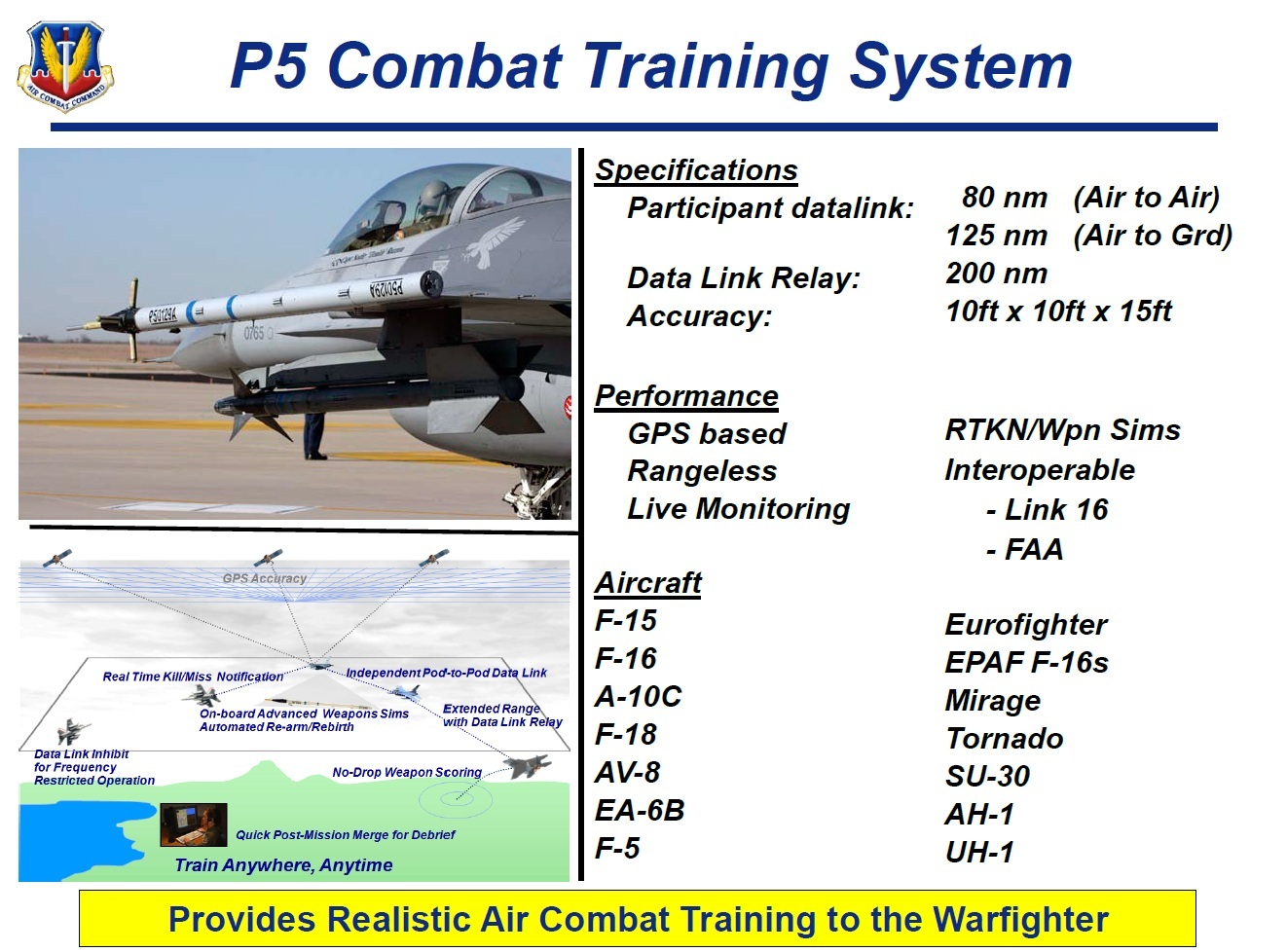

Nope. The one you're referring to, is called P5.View attachment 177794

Wasn't it the DRS pod that Pakistan got, because it mentions Pakistan in their 'deployed' regions around the world?



[IrbiS]

Wasn't it the DRS pod that Pakistan got, because it mentions Pakistan in their 'deployed' regions around the world?

Yes, they mention it. It's name is P5 by DRS Defence Solutions.

PAF Falcons with P5 during RED FLAG 10-4



[IrbiS]

Detail of the Missile Warning System on RDAF F-16BM #ET-210 spotted at Le Bourget on June 13th, 2005

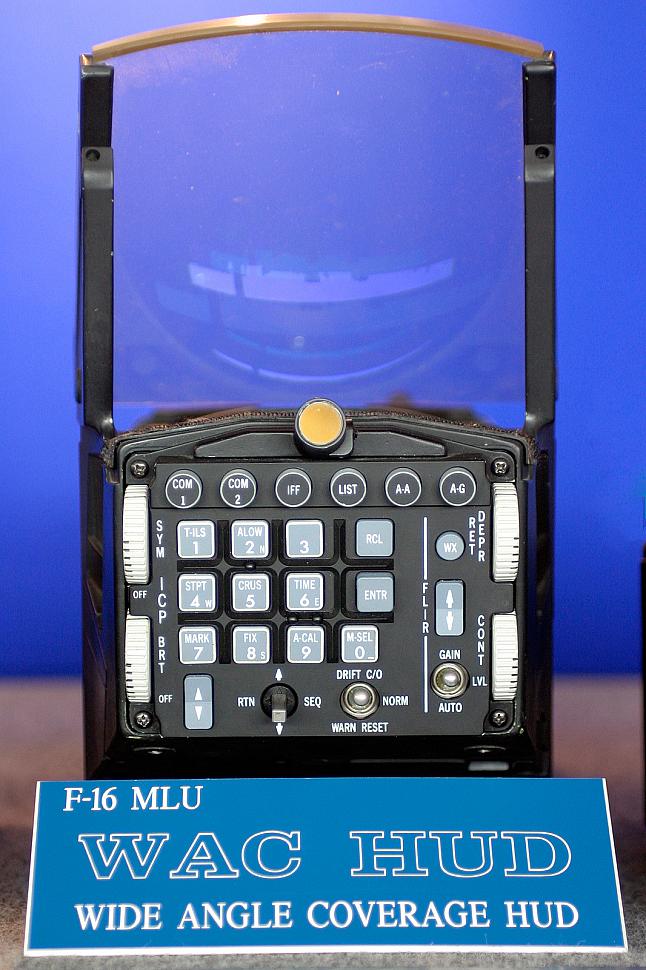

F-16 MLU Wide Angle Coverage HUD

Radar detail of an AN-APG-66(V)2 on an F-16AM

Conformal Air Refuelling Tanker/System (CARTS) which adds a probe in the forward end of the right-hand over-wing conformal tank



[Donatello]

Any pics of the BLK52 cockpit vs MLU f-16s cockpit vs the original cockpit of the BLK15 units?



[truthseeker2010]

Any pics of the BLK52 cockpit vs MLU f-16s cockpit vs the original cockpit of the BLK15 units?

Early F-16A

MLU

Block-50



[IrbiS]

Any pics of the BLK52 cockpit vs MLU f-16s cockpit vs the original cockpit of the BLK15 units?

Cockpit detail of USAF F-16A block 5 #78-0022:

F-16A block 10 cockpit with everything online:

Portuguese Air Force F-16A Block 15K serial 82-0936:

RNoAF F-16BM #711:

HAF's 52+:



[Hurter]

Any cockpit view of Block 60 E/F?



[IrbiS]

Any cockpit view of Block 60 E/F?

Scroll-up this page to Oscar's post#8372



[fatman17]

Today in F-16 history
23 Dec 1981
Pakistan orders 6 F-16s (Peace Gate I) becoming the 9th customer.
23 Dec 1981
Pakistan orders 34 F-16s (Peace Gate II).
