That even more amazing than my model :D :enjoy:
I must admit it frankly that I just grasped it at the 2nd pass (not paid enough attention at the 1st encounter), that your model ship is indeed AMAZING :enjoy: and you also show some certain qualities, most visible: patience and passionateness (I lack both to do the model stuff all on my own :P ) in turning the pieces into the complete model, put on display along with the world map, a beautiful display to adorn one's room.

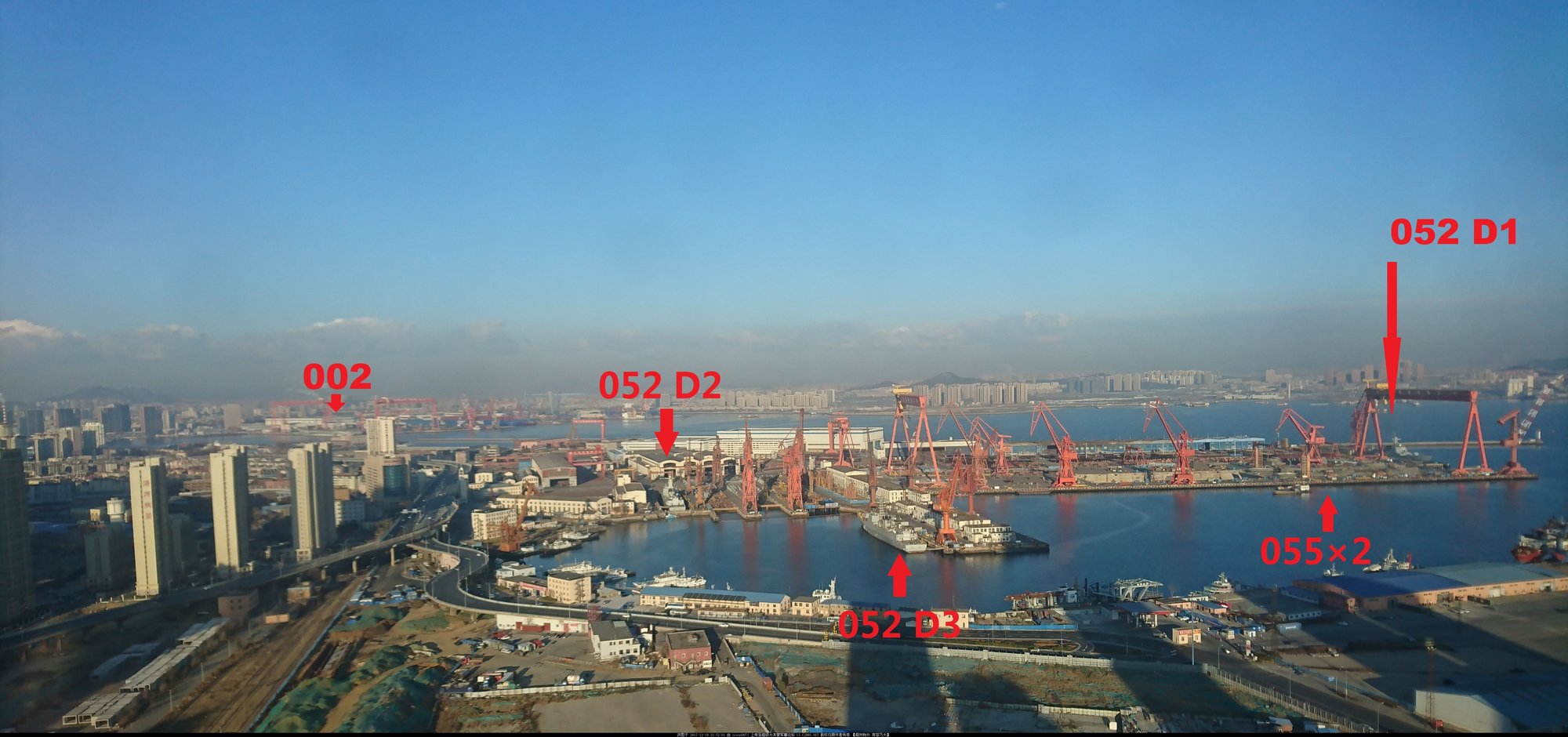

The pic does not show D4 and D5 modules which are being assembled right next to the two 055s.:enjoy:

WOW! Amazing knowing so many ships are being constructed at the same time at just one shipyard... then count in the other equally competent shipyards! The 2018 and the subsequent years will be the quite merry years for the Chinese Navy!

No wonder this news popped out yesterday:

China may take top spot in global shipbuilding orders over S.Korea

China’s shipyards may capture the top position for new orders worldwide in 2017, outpacing those in South Korea, South Korean newspaper Aju Business Daily reported on Friday, citing marine industry tracker Clarkson Research. This would be the seventh consecutive year that China would be Number One in terms of annual cumulative order intakes.

Shipbuilders all over the world received 19.51 million CGT (compensated gross tonnage) new ship orders by November this year and China topped the list with 7.13 CGT, followed by South Korea’s 5.74 CGT and Japan’s 1.82 CGT, according to latest data from Clarkson, the report said.


(...)
https://news.cgtn.com/news/3255544d31637a6333566d54/share_p.html

-----------------------------

China makes waves in world shipbuilding - Global Times (11 DEC)

Overall advantages will drive S.Korea from top spot

As China is poised to overtake South Korea to become the world's largest shipbuilder in 2017, experts said Chinese advances in recent years have ended South Korea's technological edge. But they also noted that there might be some wrangling before China eventually becomes the undisputed world champion in shipbuilding.

The Seoul-based Aju Business Daily reported over the weekend that South Korea is likely to cede the title of the world's largest shipbuilder to China, which had a significant increase in the tonnage of orders in November, citing industry data. South Korea has held the No.1 spot since 2011, the report said.

As of early December, China had 27.05 million tons of orders out of a global total of 74.83 million tons, according to the report. Japan and South Korea were No.2 and No.3 with 15.83 million tons and 15.80 million tons, respectively.

Emerging as a low-cost, high-volume shipbuilder, China overtook South Korea during the 2008-10 global financial crisis.

Zheng Ping, chief analyst of industry news site chineseport.cn, said that many factors determine a nation's competitiveness as a shipbuilder and South Korea maintained its global leadership with its technological edge.

"However, the edge was eroded by Chinese rivals during China's 12th Five-Year Plan period (2011-15). Now Chinese shipyards can build what they could not before, including ultra-large container vessels (ULCVs), liquefied natural gas carriers and luxury cruise ships," Zheng told the Global Times on Monday.

(...)
http://www.globaltimes.cn/content/1079769.shtml

-----------------------------

[FOCUS] S. Korea manufacturing industry in trouble due to internal and external challenges - Aju Business Daily (08 SEP)

The shipbuilding industry, which competes with China to win orders, is in a similar situation. According to Clarkson, a shipbuilding research institute, China stood first in monthly orders in June and July ahead of South Korea. In August, South Korea regained its top position but it only received orders for five ships, compared to 14 in June. The bigger problem is that the industry does not show any sign of improvement.

"Due to unfavorable factors at home and abroad, the competitiveness of domestic manufacturers is weakening day by day," said a shipbuilding industry official. The Hyundai Heavy Industries shipyard in the southwestern port of Kunsan, which once led the regional economy, has been shut down for three months because of the order cliff caused by a global downturn. The market share in LNG carriers, drill ships and large container ships markets dominated by South Korea has been declining.

Analysts attributed the setback in South Korea's manufacturing sector to a loss of distinction after being sandwiched between technology-dominated and cost-effective manufacturing powerhouses. As productivity remains stagnant and the introduction of new industries is being delayed, South Korea is falling back with its low-efficiency and high-cost structure hurting profitability.

The external environment is also unfavorable. Chinese manufacturers are rapidly running after South Korea with state support. In shipbuilding, China is improving its competitiveness through national financial and front-to-back support, and it is increasing its market share especially in the bulk carrier market which has relatively low technical barriers.

(...)
http://www.ajudaily.com/view/20170908134810813

From the South Korean newspaper Aju Business Daily (July 2016):

South Korea well behind China in first-half shipbuilding orders - Ajunews 20160704.png

。。。

Last edited:
.
The voice of China \"defense space-time\" on December 10 (reporter Sun Li, guo-quan wang, Liu Yaxun) air defense missile is one of the worldwide problem of the surface ship. Navy recently held a \"blue steel cup\" missiles, professional competition examination organization three new frigate fleet under the environment of the approximate real high-intensity confrontation, the subject of air defense missile carried on the real live ammunition special YanLian, stress practical fighting capacity generation foundation

.
.. Type 052 (NATO reporting name: Luhu class) is the PLA
Navy’s first ‘true’ multirole missile destroyer. Utilising a
mixture of Chinese- and Western-designed weapon systems
and sensors, the destroyers are able to fulfil a variety of
roles from surface strike, air defence, to antisubmarine
warfare (ASW). They are also the first Chinese naval
vessels to utilise the more advanced gas turbine
propulsion.
Programme
The PLA Navy began to develop the concept of a new-
generation multirole missile destroyer in the late 1980s. The
destroyers were designed by Wuhan-based China Ship
Building Institute (701 Institute) and built by Hudong
Shipyard (now Hudong-Zhonghua Shipyard) in Shanghai.
Construction of the first-of-class DDG-112 Harbin began in
1986, and the ship was launched in 1991. System
installation and sea trial lasted for three years before the
ship finally entered the service in 1994. The delay was
mainly caused by the complexity of integrating various
foreign-made contents. The second hull DDG-113 Qingdao
was commissioned in 1996.
DDG-112 Harbin was first revealed during the PLA exercise
during the 1996 Taiwan Strait Crisis. On 21 March 1997, the
destroyer and two other Chinese warships made a historical
visit to San Diego, California in the first-ever visit by PLA
Navy ships to the mainland U.S. Between May and October
2002, a fleet comprising DDG-113 Qingdao and AO-575
Taicang replenishment ship conducted the first global cruise
in the PLA Navy’s history.
Type 052 is the first Chinese-built surface combatant that
meets modern standards, representing a significant
improvement in China’s shipbuilding and shipborne weapon
technologies. The destroyer is fitted with sophisticated air
defence, anti-submarine warfare, electronic warfare, and C3I
systems. The advanced gas turbine propulsion provides the
vessel with high power-to-weight ratio and enables them to
accelerate and get underway quickly.
The hull design of Type 052 features certain European
influence. The ship has a higher beam-length ratio which
increases the stability of the ship in bad weather conditions,
but sacrifices the speed performance of the ship. With a full
displacement of 4,800 t, the destroyer was also the largest
surface warship in service with the PLA Navy at the time of
its commission.
Despite their significant improvement over the previous
Type 051 Luda class destroyer, Type 052 is still regarded as
inferior to the surface combatants introduced by Western
and Russian navies in the same age. The ship’s air defence
firepower, originally consisting of a 13 km-range Crotale/
HQ-7 SAM launcher and four twin-37mm AAA guns, is only
capable of point defence against limited number of targets.
The ship’s variable depth sonar (VDS) was still inferior to
the latest Western designs. Additionally, the shipborne Z-9C
naval helicopter only had very limited antisubmarine warfare
capability.
A key weakness of the Type 052 destroyer is its large
amount of foreign-made systems, which were sourced from
the U.S., France, and Italy. These systems were not made
to operate together or with Chinese-made systems, and as a
result, they were not well integrated. In addition, the two
hulls of the class also differed slightly in weapon system
configuration. For these reasons, the two Type 052 hulls
primarily served as technology demonstrators, with no
follow-up hull built.
In 2003/04, both hulls of Type 052 received midlife
modernisation refits, including the replacement of the eight
YJ-8 AShMs with sixteen YJ-83s; the replacement of the
French French Thales Crotale SAM with the indigenous
HHQ-7; the replacement of the HP/J33A dual-100 mm main
gun with the Type 79A dual-100 mm gun; and the
replacement of the original Type 362 air/surface radar with
a Type 364 radar.
In 2011, a second modernisation refit of both hulls involved
the replacement of the four Type 76A guns with two Type
730 close-in weapon systems (CIWS) installed on top of
the helicopter hangar; the replacement of the original
HHQ-7 SAM was replaced by the improved HHQ-7B; and
the replacement of the Type 581 Hai Ying radar with the
Type 517M long-range air search radar.
Design
Missiles
Following the modernisation refit, the primary surface strike
weapon system of Type 052 is the YJ-83 sea-skimming
anti-ship cruise missile. Four quadruple launchers are
installed at the mid-ship position. The missile uses active
radar-homing to deliver a 165 kg warhead to a range in
excess of 180 km.
The main air defence weapon is an 8-cell HHQ-7 short-
range SAM system, designed to engage aircraft in all-
weather, day/night conditions at a maximum range of 8—12
km with line-of-sight guidance. The missile also has limited
capability to intercept sea-skimming anti-ship missiles at a
much closer range (4—6 km).
Guns
A Type 79A (PJ-33) dual-barrel 100-mm/56-calibre gun is
installed on the bow deck, in front of the SAM launcher.
The gun is capable of firing 15 kg shells at a rate of 18
rounds per minute to a range of 22 km.
For air defence the frigate is equipped with four Type 76A
dual 37-mm anti-aircraft artillery guns, capable of firing 1.42
kg shells at a rate of 180 rounds per minute to a range of
8.5 km against airborne targets. These were later replaced
by two Type 730 CIWS. The seven-barrel gun provides a
firing rate of 4,600—5,800 rounds/minute and a maximum
firing range of 3,000 m. Each CIWS has its own
independent power-supply, as well as a Type 347G (EFR-1)
fire-control radar (6 km detection range against airborne
targets of RCS 0.1m2) and an electro-optic director (5—6
km tracking range).
Anti-Submarine Warfare
Type 052 is fitted with two triple-324mm torpedo launchers,
which is used to launch the Yu-7 (copy of the U.S. Mk46
Mod-1) anti-submarine torpedo. The Yu-7 carries a 45 kg to
engage underwater target at a speed of 43 kt, and has a
maximum range of 7.3 km.
There are two Type 75 (RBU-1200) 12-tube anti-submarine
rocket launchers installed on the bow deck, with 120
rockets (240 mm calibre, 34 kg warhead). The maximum
range is 1,200 m.
Sensors
The ship has a Thomson-CSF TSR 3004 Sea Tiger (or its
Chinese copy Type 360S/SR60) for air and surface search;
a Type 518 (REL-2) Hai Ying for long-range surveillance and
early warning (later replaced by a Type 517M); a Type 345
(also known as MR35, J-band) for HQ-7 SAM fire-control; a
Type 344 (also known as MR34, I/J-band) for YJ-83 SSM
and 100-mm main gun fire-control; and two Type 347G
(also known as EFR-1) Rice Bowl (I-band) for 37mm AAA
fire-control. For navigation, the ship has two Racal Decca
RM-1290 (I-band).
The destroyer is fitted with two types of sonar systems,
including the DUBV-23 (SJD-8/9) medium-frequency hull-
mounted sonar for active search and attack, and the
DUBV-43 (ESS-1) towed medium-frequency variable depth
sonar (VDS) for active attack. The Type 052 is the first
Chinese destroyer to be fitted with VDS as a standard
equipment.
Electronic Countermeasures
The Type 052 has two Type 946 15-barrelled chaff/decoy
launchers. Active ECM system include the Type 826C
(BM-8610) intercept and jammer.
Command & Control
The Type 052 is the first Chinese surface combatant to
have been equipped with an integrated combat data
system. The ZJK-4 is a Chinese copy of the Italian Alenia
Marconi Systems (now Selex Sistemi Integrati) IPN-10,
which integrates the target acquisition, navigation,
communications, signal processing and weapon control
functions. The combat system central computer computes
and evaluates the target data and allocates data to the
weapon systems. The system carries out multiple target
search and track, target prioritisation and automatic
engagement of weapons.
Other systems include two Type 630 (GDG-775) optronic
directors, British-made SNTI-240 satellite communications
(SATCOM), and datalink.
Aviation
The helicopter deck at the stern has a single landing spot
for a medium size helicopter such as Harbin Z-9C. The
deck is fitted with the helicopter handling system. A fully
equipped hangar accommodates two helicopters.
Propulsion
The propulsion system is a combined diesel or gas turbine
(CODOG) arrangement. The main propulsion consists of two
GE LM2500 gas turbines rated at 55,000 hp (41 MW)
sustained. Auxiliary propulsions include two Chinese
license-built German MTU 12V 1163TB83 diesels rated at
8,840 hp (6.5 MW) sustained. The destroyer has 2 shafts
with CP propellers, with a maximum speed of 31 knots.
Specifications
Displacement:......4,200 t (standard);
4,800 t (full load)
Length:............144 m
Beam:..............15.6 m
Draft:.............4.25 m
Speed..............31 knots
Range:.............4,000 nautical miles
at 18 kt
Crew:..............270 (40 officers)
Ship List:
Name No. Builder Fleet Launch Comm
Harbin 112 Hudong North 28 Aug
1991 8 May 1994
Qingdao 113 Hudong North 18 Oct
1993 28 May 1996

.
Pardon ... but there are already several well-established threads on naval topics including one each for the Type 052D and E ... so why this strange new one without a source, no link?

. .
WELL, will some Mod with the privilege to clean the thread please puts this post into the ethereal realm?

@Bakshi tufail (tufail --> To fail !??), please spend some time to read first, no need to rush yourself, get used first and learn from other posters before throwing out your own... and don't forget to SEARCH first the Section-WIDE of "Chinese Defence Forum" ... if you want to post some military stuff here.

I already reported this OP for deletion so anytime this entire new thread may just disappear....

.
Sir this is my first post here .In future I will try to improve my posts

There is a key to do so. First, surf around, visit topics of your interest and read. See if the subject already exist then there is no need to create a duplicate thread but you can take part in existing discussion. Also, avoid repetitive posting of existing information and not to believe wikipedia much or for copy paste. For this time, thread is merged with existing PLAN discussion.

Regards,

. . . .
Wuchang shipyard launched the 7th Type 081A Minesweeper Wudi 无棣 (hull number 847) on 10 December. (File photo). 无棣 is the name of Wudi County in Binzhou, Shandong Province.

dafeng cao @xinfengcao 3:10 AM - 16 Dec 2017



The 29th Type 054A Frigate is launched at HDZH shipyard today, 16 December 2017.





。。。

Last edited:
.
Xiamen 厦门 hull no.154 Type 052D DDG

The day of commissioning of the 7th Type 052D destroyer Xiamen is finally disclosed, it was on 10 June 2017. OedoSoldier @OedoSoldier 5:24 PM - 19 Dec 2017

The ship is named after Xiamen 厦门 (formerly romanized as Amoy), a subprovincial city in southeastern Fujian Province, beside the Taiwan Strait. Xiamen is one of the original four special economic zones initiated by Deng Xiaoping in the early 1980s.







~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

The "6th" destroyer Type 052D admitted to active service, Xiamen 厦门 with hull no.154, is declared fit for combat. East Pendulum @HenriKenhmann 4:47 AM - 19 Dec 2017
[A clarification from Kenhmann's tweet: "the 7th launched, but 6th entered into service"]





。。。

Last edited:
.

Latest posts

Pakistan Affairs Latest Posts

Back
Top Bottom
